Reliable protection at high ambient temperatures Loadable:string protection up to 125, size:63A,80A,100A,125A; 250. size:160A,200A,220A,250A; 400, size:320A,400A Tested:ultimate short circuit breaking capacity Icu of 25kA according to IEC60947-2, SM1-PV 3P DC750V 4P DC1000V specialized in Moulded Case Circuit Breaker dc circuit breaker Fast:Reclosable for mininum standstill times Safe:reliable disconnector properties, switching under load Approval:provide on request
SM1-PV dc circuit breaker is designed to provide overcurrent protection within appliances or electrical equipment, where a branch circuit protection is already provided or not required. Devices are designed for direct current (DC) control circuit applications. SM1-PV 3P DC750V 4P DC1000V specialized in Moulded Case Circuit Breaker dc circuit breaker is widely used in solar power system.
| Rated Current In(A) | 125, size:63A,80A,100A,125A; 250. size:160A,200A,220A,250A; 400, size:320A,400A |
| Ue Rated operating voltage(VDC) | 3P 750VDC; 4P 1000VDC |
| Rated insulation voltage Ui(VDC) | DC1000V |
| Rated impact voltage Uimp(kV) | 8kV of SM1-PV 3P DC750V 4P DC1000V specialized in Moulded Case Circuit Breaker dc circuit breaker |
| Ultimate breaking capacity Icu(kV) | 25kV |
| Trip type | Thermal-magnetic |
| Ambient temperature(℃) | -20℃~70℃ |
| Altitude | 2000M of SM1-PV 3P DC750V 4P DC1000V specialized in Moulded Case Circuit Breaker dc circuit breaker |
| Installation | Fixed; plug-in |
| Accessories | Auxiliary, Alarm, Shunt release, Manually-operated and electric operated. |

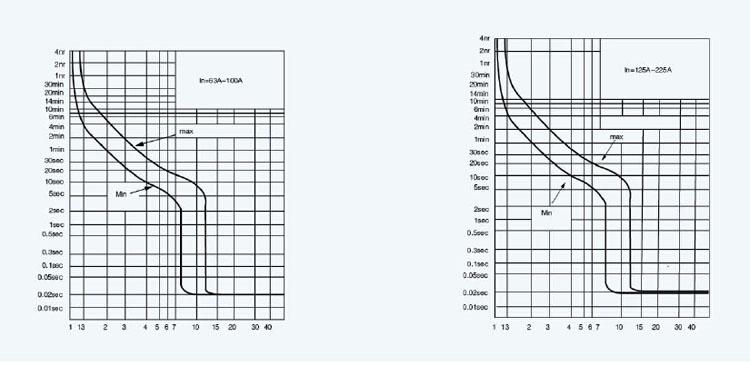

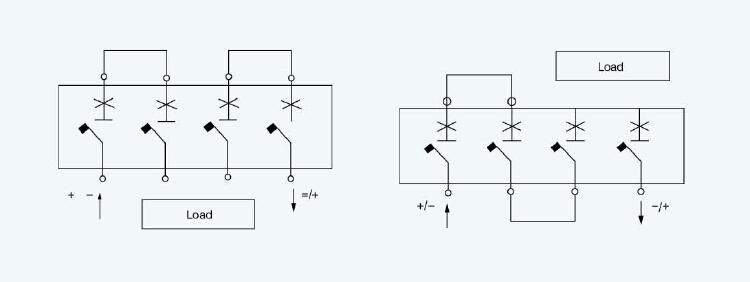

■ Protection and Isolation wiring
■ The load should be ≤ DC1000V
The connection considered for onetwork in which the middle point of the supply source is earthed In this case the breaker protects and isolates the load

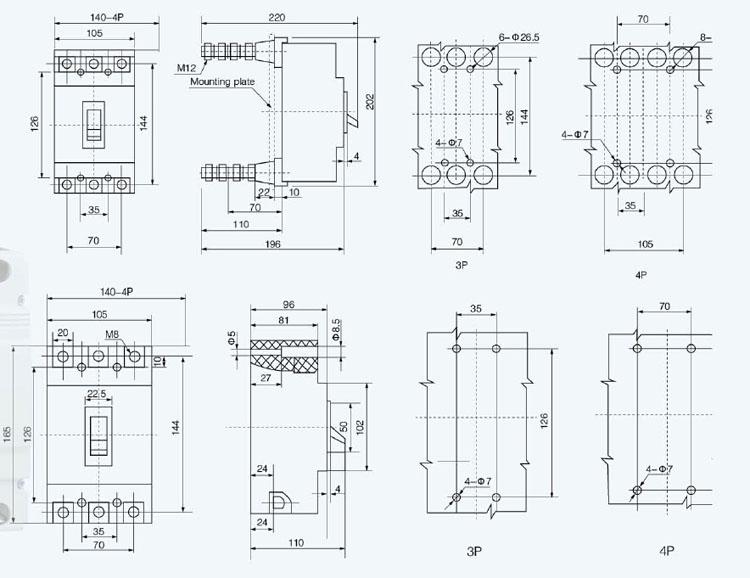

Installation Dimensions
