SCB2 Polarity DC Circuit Breaker

SCB2 Polarity DC Circuit Breaker

DC Circuit Breaker

Place of Origin: Zhejiang, China (Mainland) Brand Name: SUNTREE Model Number: SCB2-63 Manual Transfer Switch MCB Type: 1P 2P Manual Transfer Switch MCB Poles Number: 1 Product name: Manual Transfer Switch MCB Standards: CE CB IEC60898 Poles: 1,2,3,4 for Manual Transfer Switch MCB

Description

Quick Details



  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: SUNTREE
  • Model Number: SCB2-63 Manual Transfer Switch MCB
  • Type: 1P 2P Manual Transfer Switch MCB
  • Poles Number: 1
  • Product name: Manual Transfer Switch MCB
  • Standards: CE CB IEC60898
  • Poles: 1,2,3,4 for Manual Transfer Switch MCB
  • Tripping characteristics: C for Manual Transfer Switch MCB
  • Rated breaking capacity: 1P DC Mini circuit breaker is up to10kA
  • Rated current:: Manual Transfer Switch MCB witnin 1~63A
  • Mechanical Life:: Manual Transfer Switch MCB up to 20,000
  • Protection degree:: Terminals IP20,Housing IP40 for Manual Transfer Switch MCB



Application



SCB2 PV DC breaker supplementary protectors are designed to provide overcurrent protection within appliances or electrical equipment, where a branch circuit protection is already provided or not required. Devices are designed for direct current (DC) control circuit applications.

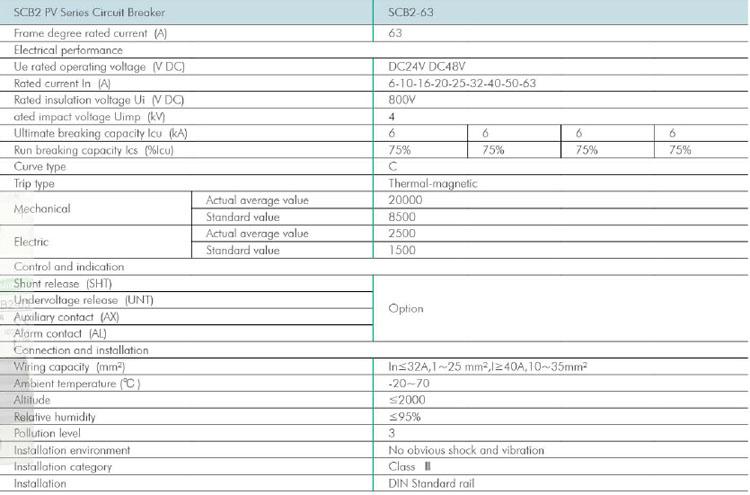

Specifications

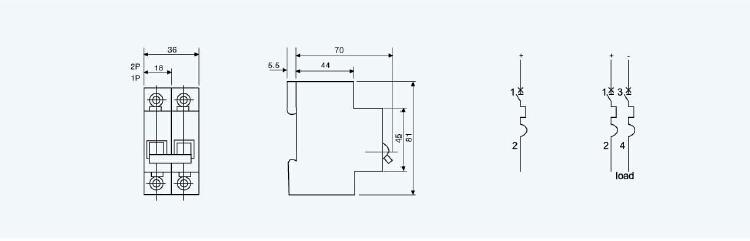

Dimensions
